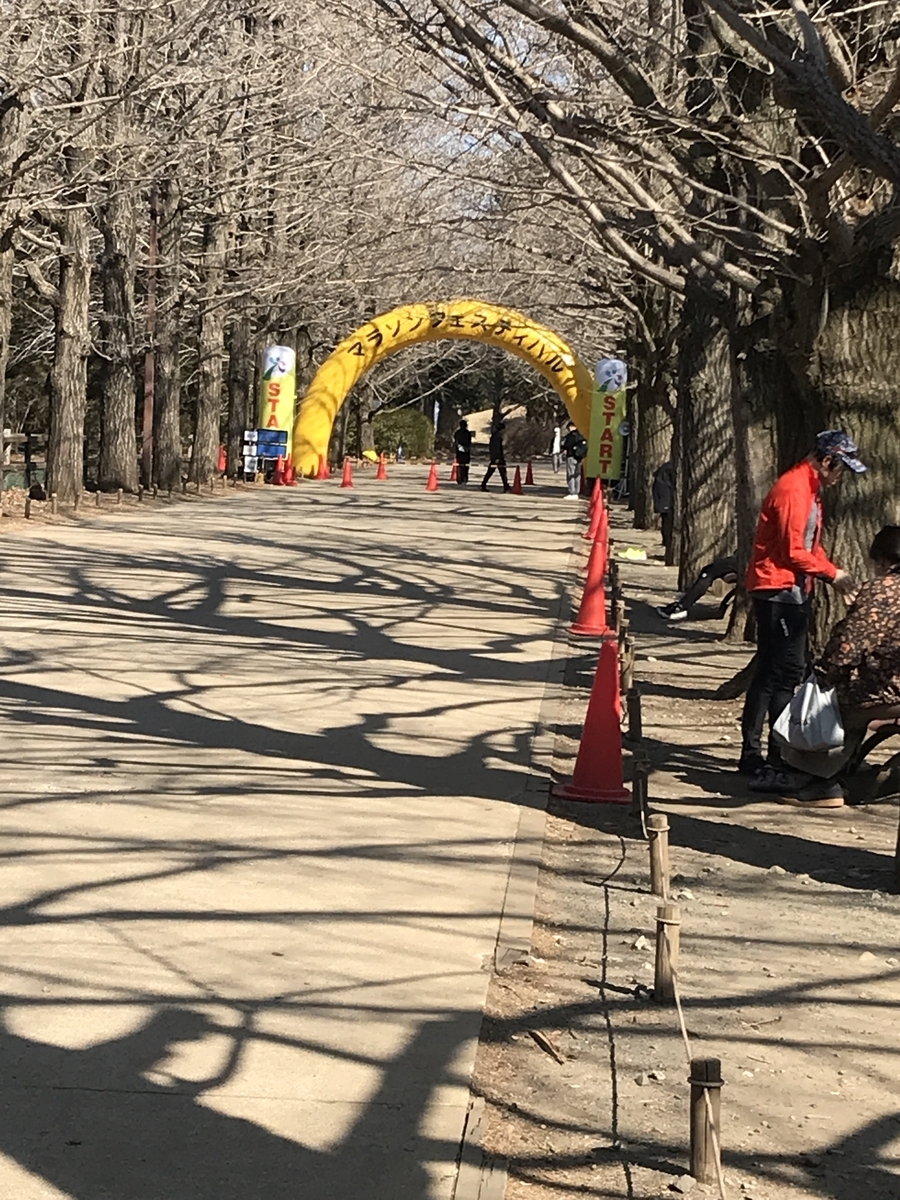

ランニングフェスタ - スタート・ゴール地点

この時点で開始20分前位だったのですが、その間は、ゼッケンを付けたり、ジェルを飲んだり、トイレに行ったり、軽く走ったりして、過ごしました。気が付くと、スタート地点に選手が集まっていることに気付き、行ってみると、ハーフに出場する人々でした。持ちタイムの速い順に前から詰める形のようでしたが、今回は、1時間45分前の標識は無かったように思えます。更衣室にいた速そうな若い人は、もっと短い距離や30kmに出場していたのかもしれません。私は、目安としては1:45、できたら1:40位行きたいと漠然と思っていたので、1:45のペースメーカーのすぐ後ろで号砲を待ちました。

号砲が鳴り開始すると、意外と1:45がゆっくりめなので、少し前に出て1:40のペーサーに付きました。ただ、それも少しゆっくりめなので、最初の1:095kmの間で1:40のペーサーより前に出ました。その前の1:35のペーサーは全く見えず、同じくらいのペースの人と6、8人位で群を成して進みました。

1つ気付いたのが、私は山登りなどは得意ではないので、自分では登り坂に苦手意識があり逆に下りは得意という意識がありましたが、私以上に登り坂でペースダウンしている人が多く、登り坂で私が抜かして、下り坂で抜かされるということが度々ありました。日頃のランニング コースに立川段丘が入っているので、知らず知らずの内に鍛えられたのかもしれません。

最初の1周(5km + 1.095km)が終わり、調子が良かったので集団の前に出ました。風がある時は集団にいた方が風除けになりますが、1周走った中では、風は大した影響はないように感じました。この日は確かに強風でしたが、このコースは公園内にあるため木が生い茂っており風を吸収してくれるため、シティマラソンなどと比べて風の影響は受けにくいのかもしれません。2週目の前半は落ちてくる前のランナーを数人抜かしながら1:35のペースメーカーに追いつくことを期待して走りました。思えば、ここがこのレースでの私の絶頂期でした。2週目のラストに来て、体の内臓の痛みも少し出てきており、左太腿の付け根も痛み出したため、ペースを落とすことにしました。1週目の集団にいた何人かに抜かれ、どんどん差が離れていきました。2周目がとにかく長く感じました。

2周終わった段階で、3周目はとにかくローペースで走り切り、4周目に余力を残すことにしました。練習では、同距離は少なくとも5分/kmで走っていたので、そのペースで走るだけの自信はありました。結果的に、3、4周目ともローペースになったものの、5分/kmまで落とすことはなく走り切りました。最後は、スパートを掛けていた1:40のペーサーにも抜かれ、ペーサーなのにスパートを掛けるのは卑怯だと思いました。ただ、終わってみると、1:40よりは早く、どうやら、そのペーサーは、周りの1:40付近のランナーを引っ張るためにスパートしていたようでした。

結果

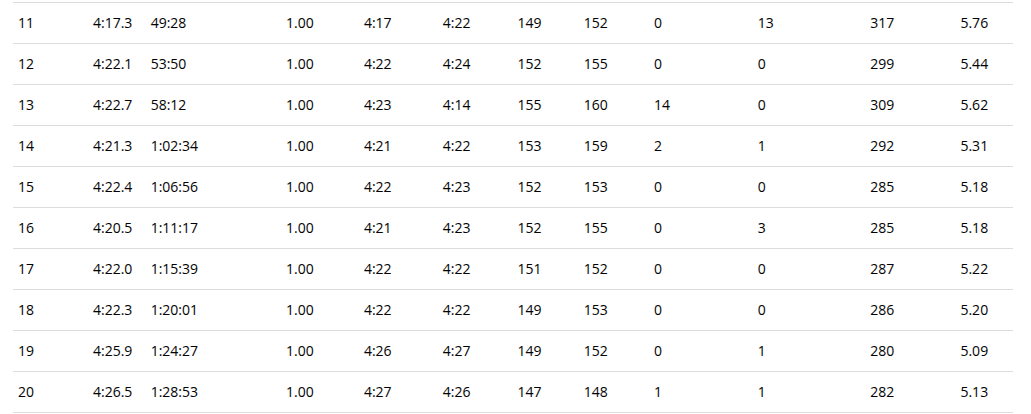

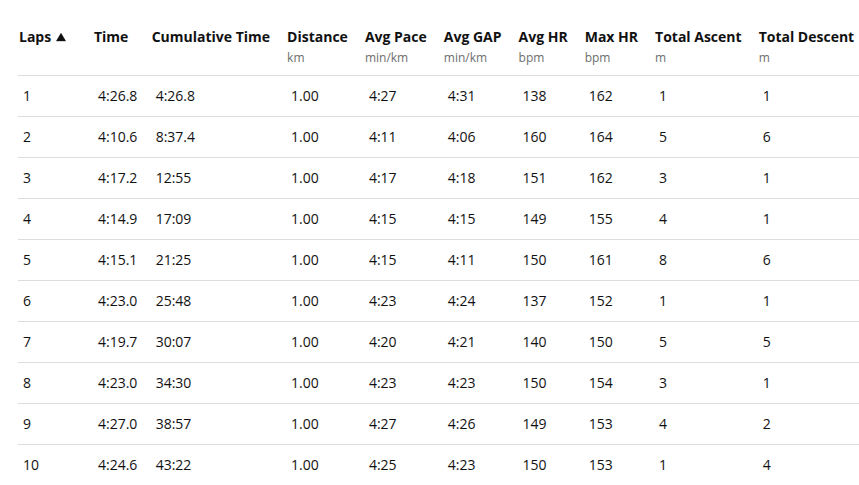

5kmラップと結果

結果だけみると、1:40を切れたので大満足でした。練習では、大体、5分位/1kmで走ることが多いので、4分40秒ペースで走れたのは大きな収穫でした。ただし、ラップだけみると、1、2周目と3、4周目の差が大きく、やはり10km以上の練習やより速いペースでの練習を日頃からしていないと、ペースダウンしてしまうことがわかったことは今後の練習の参考になりそうです。

emotetのRC4

emotet loaderのRC4

最近emotetがまた流行っているらしいので、昨年流行したemotet(解析したのは今年の初め)との違いを見てみる

今回はLoader周りの記述のみ簡単に解説

前回を簡単におさらいすると、

  1. 外側のPEから.dataセクションに存在したPE loaderとPEが同一領域に確保される(base64で変換)
  2. PE loader内の処理で、起動されるPEが再度別領域に確保される
  3. PEが実行される

今回は、何やら

  1. 外側のPEがLoaderの前に、.dataセクションに存在したPre-loader(後述)をheap上に確保する(単純なadd/sub演算による変換)
  2. Pre-loaderがPE loaderとPEを同一領域に確保する
  3. PE loader内の処理で、起動されるPEが再度別領域に確保される
  4. PEが実行される

という感じになっている

2のPre-Loaderがやや技巧的になっていて詳細には、

  1. RtllFindResource_U/RtlAccessResource/VirtualAllocateのアドレスを解決する
  2. .rsrcセクションに存在する特定のエントリの領域分を確保する
  3. 2をRC4(*)で復号(PE loader+PEを生成)する

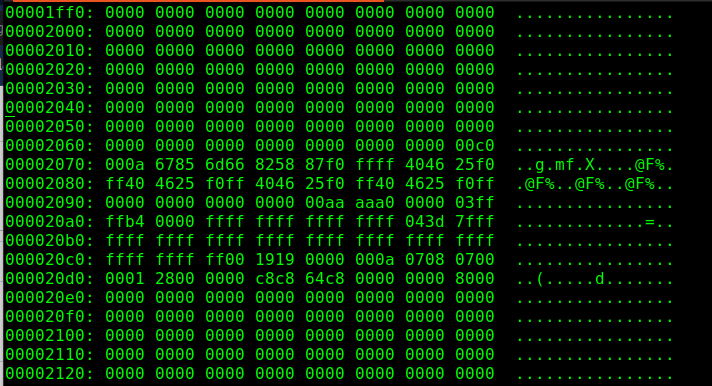

RC4の実装について、見てみる

f:id:vrodxda:20200922143436p:plain
emotet-RC4-01
f:id:vrodxda:20200922143521p:plain
emotet-RC4-02
f:id:vrodxda:20200922143541p:plain
emotet-RC4-03

これらのスクリーンショットは、実行時にヒープに確保された0x800程あるPre-loaderの最後の領域に存在しているRc4の実装である

一番下の図 emotet-RC4-03 から見ていく
多くの共通鍵暗号に当てはまるが、0x7e4のxor(*1)に注目する
xor edx,ecx
edxが更新されるので、

1. edxが取得されたメモリ(スタック)に暗号化されたデータ(今回の場合はリソースセクションから参照された領域)が存在する
2. edxが格納されるメモリ(スタック)に復号されたデータ(今回の場合、事前に確保されたPE loader + PE )が存在する
3. ecxが取得されたメモリ(スタック)に鍵から生成された疑似乱数が存在する

ことが推察される

スタックに確保されたメモリはそれぞれローカル変数、または引数を指していると思われるが、それらを1,2,3から明らかにする 1.2からは簡単にわかる

  • スタック変数
    [ebp -18] : 現在のストリームのインデックス

  • 引数
    [ebp + 8] : 暗号化データのベースアドレス [ebp +18] : 復号データの格納先のベースアドレス

3(どのように鍵が生成されているか)を読み解く

中々読み解いていくことが難しい

そこで上のアセンブリを以下の様に、メモリに「ストア」した段階で、1つ前に現れた「ストア」移行の命令と共に、ボックスに囲ってみる

f:id:vrodxda:20200923095453p:plain

  • スタック変数

[ebp -1c] : 疑似乱数を一時的に格納している領域

~7bb | add ecx eaxの生成元を辿っていくと、

[ebp - 14 - 11c] : 疑似乱数の生成元1(addされるデータの1つが格納される)
[ebp - 8 - 11c] : 疑似乱数の生成元2(addされるデータの1つが格納される)
[ebp -1] : 内部パラメータ(swap処理の為に一時的に使われる)

それぞれの関係を見ていくと、

[ebp - 14 - 11c] <= [ebp -1] <= 5
[ebp - 8 - 11c] <= [ebp - 14] <= 6
[ebp - 1] <= [ebp - 8 - 11c] <= 4

これはスワップ

[ebp - 14] : 1ずつincrement <= 2
[ebp - 8] : [ebp - 14 - 11c] + 1 <= 3

まとめると、

i, j = 0, 0
loop:
        i = (i + 1) % 256 # <= 2
        j = (j + S[i]) % 256  # <= 3
        S[i], S[j] = S[j], S[i]  # <= 4,5,6
        K = S[(S[i] + S[j]) % 256] # <= 7

RC4のPRGAの処理をしていたことが分かる

emotet-RC4-01 に関しては、
1. 「昇順で値が並ぶ配列」
2. 下記の「K」に相当する値の一時的な配列

emotet-RC4-02 に関しては、
3. 先の1,2で生成された値を状態の1つ(下記変数「j」)に足し合わせ
4. 1で生成された配列の「i」番目の要素と、3で更新された「j」番目の要素をスワップ

といった動作を行っている

S = range(256) # <= 1
j = 0
for i in xrange(256):
        k = ord(key[i % len(key)]) # <= 2
        j = (j + S[i] + k) % 256 # <= 3
        S[i], S[j] = S[j], S[i] # <= 4

なお、この場合、鍵は.dataセクション内の、このペイロード自体が存在した直前に置かれ、ペイロードの引数として参照されるようだ

このアセンブリ(一般的なアセンブリにも当てはまるかももしれない)を分析する場合以下の点が難しい

  1. メモリのロードにSIBを用いたインデックスを使う場合
  2. 配列アクセスの場合だが、この時、SIBのレジスタがロードされた領域が別の命令によって、ロードされているので、配列のアクセスの際にどこを参照しているのか 直観的に分かりにくい
  3. 意味のある単位に分割しずらい
    • これは慣れの問題もあるかもしれないが、通常、「ロード => 処理 => ストア」という単位で、「ストア」をした場合、一度、アセンブリの意味の単位が切れるという認識がある
    • これは単純に分析の為の表現という問題だが、「774 - 7cd」辺りを見て、意味のある単位の計算が何個行われているのかぱっと見て分かりずらい(実際にこの領域にストアは5つある)

補足

*1 xorが使われている場合の暗号化パターン

xorの使い方次第で、暗号化アルゴリズムの推測が可能である

  1. メモリの値をロードして、xorの結果を直接ロードするパターン
    e.g. xor [eax],ebx
    mod == 0x00,0x01,0x10の場合である
    この場合、値は上書きされるので、暗号化される前の値を後で使用したりする計算を行う可能性は低い(事前に別途コピーしていなければ)

  2. 1byteのみ書き換えを行うパターン
    e.g. xor al,bl
    opcodeが0x30,0x32の場合である
    1byteずつ暗号化するということストリーム暗号である可能性が高い 最もこのRC4のケースの様に、1byteずつの演算だが、レジスタのサイズが4byteで計算している場合等はある

  3. 16byte以上のxor演算を行う場合
    e.g. pxor xmm1,xmm2
    16byte単位(128bit)や32byte(256bit)単位でxor演算を行う暗号化処理である(例えば、DESや、自前で実装したAESなど)

  4. 即値(immediate value)を用いる場合
    e.g. xor eax,12345
    opcode = 0x83の場合
    滅多にないかもしれないが、unpack処理等で鍵を固定値にしている場合等はあり得る

その他

DT_HASH and DT_GNU_HASH preparation by linker

Example of linker development reflecting loader implementation

Here, I will show you how to prepare codes to resolve API dynamically on linker through reading elf loader codes(musl libc :: ldso/dynlink.c).

On elf format, either of two API hash tables needs to be prepared to provide export symbols as a shared library to other demanding libraries or executables.

Simpler one is called DT_HASH and daily-used, rather sophisticated one is DT_GNU_HASH.

Both shares a basic role. It is to minimise the computational cost of calling strcmp when resolving own export symbols.

When an import symbol comes, 32bit hash is calculated in its own way, and if the hash is in the hash table, it provides dynamic symbol table index.

DT_HASH function is

static uint32_t sysv_hash(const char *s0)
{
    const unsigned char *s = (void *)s0;
    uint_fast32_t h = 0;
    while (*s) {
        h = 16*h + *s++;
        h ^= h>>24 & 0xf0;
    }
    return h & 0xfffffff;
}

GNU_HASH function is

static uint32_t gnu_hash(const char *s0)
{
    const unsigned char *s = (void *)s0;
    uint_fast32_t h = 5381;
    for (; *s; s++)
        h += h*32 + *s;
    return h;
}

DT_HASH

typedef struct /*dt_hash_table */{
  uint32_t nbucket;
  uint32_t nchain;
  // it depends on above 2.
  uint32_t bucket[nbucket];
  uint32_t chain[nchain];
} DtHashTable;

The computed hash is used for accessing hash table index, Starting thinking things naively, suppose you prepare 4byte array(assuming dynamic symbol table index is represented as 4byte) in a range of 32bit hash, you need 4byte times 232 (Since every hash value store distinct values.), which is too much to allocate.

You cannot change hash function and the output bit range, but you can adjust the size of hash table by setting your own bucket size as modular of a hash value.

Actually, 4bytes on each hash value are not enough considering possibility of hash collision. For instance, you need to store a chain to trace when a given symbol is not matched with the element stored in the table index and two hash values are shared between multiple API strings.

If a hash collides, then the index of the array stores an index of next symbol table index. The last element of the chain means index is 0.

static Sym *sysv_lookup(const char *s, uint32_t h, struct dso *dso)
{
    size_t i;
    Sym *syms = dso->syms;
    Elf_Symndx *hashtab = dso->hashtab;
    char *strings = dso->strings;
    for (i=hashtab[2+h%hashtab[0]]; i; i=hashtab[2+hashtab[0]+i]) {
        if ((!dso->versym || dso->versym[i] >= 0)
            && (!strcmp(s, strings+syms[i].st_name)))
            return syms+i;
    }
    return 0;
}

Considering these, a linker needs to prepare a code for generating corresponding output.

static void check_collision(uint32_t* bucket, uint32_t* chain, uint32_t mod, uint32_t sym_index) {

  uint32_t* p = 0;
  if (*(bucket + mod)) {
    for (p = chain + *(bucket + mod) ; *p ; p = chain + *p);
    *p = sym_index;
  } else {
    // no collision
    *(bucket + mod) = sym_index;
  }
}

First, you take a look at bucket *(bucket + mod). If it does not collide, insert symbol table index. If it does, then trace the chain which stores next symbol information, for (p = chain + *(bucket + mod) ; *p ; p = chain + *p); and set symbol index at the tail of it.

DT_GNU_HASH

typedef struct {
  uint32_t nbuckets;
  uint32_t symoffset;
  uint32_t bloom_size;
  uint32_t bloom_shift;
  size_t bloom[/*bloom_size*/];
  uint32_t buckets[/*nbuckets*/];
  uint32_t chain[];
} gnu_hash_table;

After all, you have to call strcmp to validate if the chain matches the input, and DT_HASH does so often. It is much less than calling all of it if bucket is big enough and hash values are distributed rather equally.

Most cases, an import API wants to find just one export API on multiple dynamic symbol tables on each dynamic shared objects. And the cost depends on number of all export symbols on every shared library before matched one because elf loader does not remember any tags of API and shared library name unlike on windows. People started introducing bloom filter which prevents iterating hash table on hash collision.

The idea sounds difficult, but code is not as difficult as it sounds.

static inline struct symdef find_sym2(struct dso *dso, const char *s, int need_def, int use_deps)
{
    uint32_t h = 0, gh = gnu_hash(s), gho = gh / (8*sizeof(size_t)), *ght;
    size_t ghm = 1ul << gh % (8*sizeof(size_t));
    struct symdef def = {0};
    struct dso **deps = use_deps ? dso->deps : 0;
    for (; dso; dso=use_deps ? *deps++ : dso->syms_next) {
        Sym *sym;
        if ((ght = dso->ghashtab)) {
            sym = gnu_lookup_filtered(gh, ght, dso, s, gho, ghm);
static Sym *gnu_lookup_filtered(uint32_t h1, uint32_t *hashtab, struct dso *dso, const char *s, uint32_t fofs, size_t fmask)
{
    const size_t *bloomwords = (const void *)(hashtab+4);
    size_t f = bloomwords[fofs & (hashtab[2]-1)];
    if (!(f & fmask)) return 0;

    f >>= (h1 >> hashtab[3]) % (8 * sizeof f);
    if (!(f & 1)) return 0;

    return gnu_lookup(h1, hashtab, dso, s);
}

GNU_HASH_TABLE manages so called bloom bits to record if a given symbol exists on the entire hash table.

From the above code, you can see next interpretation.

  1. Set a bit vector named bloomword

    const size_t *bloomwords = (const void *)(hashtab+4);

  2. Pick up an index of bit vectors chunked by 8 * sizeof(size_t).
    gho = gh / (8*sizeof(size_t))
    size_t f = bloomwords[fofs & (hashtab[2]-1)];

  3. Set two bits on it.
    // 1 << (hash % (8 * sizeof(size_t)))
    size_t ghm = 1ul << gh % (8*sizeof(size_t));
    // (hash >> bloom shift) % (8 * sizeof(size_t))
    f >>= (h1 >> hashtab[3]) % (8 * sizeof f);

  4. If the one of bits is not set. you can make sure the symbol is not on the hash table.
    if (!(f & fmask)) return 0;
    if (!(f & 1)) return 0;

Given this, linker should prepare the bloom bits together with storing an export symbol.

static void set_bloom_bits(uint32_t gh) {

  gnu_hash_table* hash_table_p = D[GNU_HASH_INDEX].data_p;
  size_t shift1 = gh % (8*sizeof(size_t));
  size_t shift2 = (gh >> hash_table_p->bloom_shift) % (8 * sizeof (size_t));
  size_t bit1 = 1ul << shift1;
  size_t bit2 = 1ul << shift2;

  // 32bit hash is devided by 64 or 32 and get the index of bloom vector.
  uint32_t index = gh / (8*sizeof(size_t));
  size_t* vector = &hash_table_p->bloom_array + (index & (hash_table_p->bloom_size-1));
  *vector = *vector | bit1 | bit2;
}

Argument gh is a value coputed by the hash function.

  1. Bit vector is &hash_table_p->bloom_array.
  2. Index of bit vector is (hash value % 64(or 32)) & (bloomsize - 1).

    After you know which 64bit vector needs to be modified, compute bit in a following way.

    • original hash value % 64(or 32)
    • shifted hash value %64 (or 32)
      amount of shift is specified by bloom_shift parameter.
      And the two bits wake up specified by *vector = *vector | bit1 | bit2; unless they had been set already.

Note if bloom shift is zero, only 1 bit is set.

Implementing this filter, I confirmed export symbol was successfully not filtered by previous dynamic loader provided by musl libc when it was called from others because the bits which suggest its existance is set.

After passing through bloom filter, computed hash will be addressed by GNU HASH.

Loader code is as follows.

static Sym *gnu_lookup(uint32_t h1, uint32_t *hashtab, struct dso *dso, const char *s)
{
    uint32_t nbuckets = hashtab[0];
    uint32_t *buckets = hashtab + 4 + hashtab[2]*(sizeof(size_t)/4);
    uint32_t i = buckets[h1 % nbuckets];

    if (!i) return 0;

    uint32_t *hashval = buckets + nbuckets + (i - hashtab[1]);

    for (h1 |= 1; ; i++) {
        uint32_t h2 = *hashval++;
        if ((h1 == (h2|1)) && (!dso->versym || dso->versym[i] >= 0)
            && !strcmp(s, dso->strings + dso->syms[i].st_name))
            return dso->syms+i;
        if (h2 & 1) break;
    }

    return 0;
}

It is not exactly like DT HASH.
Common thing is * both bucket contains symbol index on its bucket.
* When collision, you do not update any bucket but only chain. (this makes sense since the bucket was full)

But, how chains are filled up and traced are different.

DT HASH represents a chain as index of next symbol table terminated by zero. Bucket stores current symbol table index. Do not confuse.

GNU HASH instead store almost hash value itself on chain. uint32_t *hashval = buckets + nbuckets + (i - hashtab[1]);

This hash comparison is operated before every strcmp to call it less often. if ((h1 == (h2|1)) && (!dso->versym || dso->versym[i] >= 0)

When hash collision occurred, which means the loop iterates nexts, two values are incremented.

  1. symbol table index i which are stored on first encountered bucket.
  2. Array which stores chain (uint32_t*)hashval Do not confuse with
    • hash value itself (uint32_t*)hashval
    • bucket array &buckets[i]
      This comes after bucket array.

That says, when hash collision occurred for storing a symbol, you should take following two values and increments them. In fact, 1 & 2 are in a sense shared because a symbol table index corresponds to an index of chain array as there are as many numbers of elements as the index of symbols.

2 is understandable. I have stumbled on 1 and considered heavily what is meant by incrementing symbol table index. After all, I implemented generation code in something like below. And it seems to work.

static void check_gnu_hash_collision
(
 uint32_t* bucket, uint32_t* chain,
 uint32_t gh, uint32_t mod,
 uint32_t sym_index, uint32_t sym_offset) {

  uint32_t* p = bucket + mod;
  if (*p) {
    p = chain + *p - sym_offset;
    for (;*p;p++);
    *p = gh & -2;
  } else {
    *p = sym_index;
    *(chain + sym_index - sym_offset) = gh & -2;
     }
}

When hash collision occurred if (*p) {},

I only update(for (;*p;p++);) pointer to chain array p = chain + *p - sym_offset;.
If it comes an emptiness, fill the almost hash value *p = gh & -2;.

gh & -2 is rightest 1bit is used for checking emptiness of chain, not for validating hash value.

This seems to depend how symbols are stored on the hash table. If you try to store a symbol whose symbol table index is maximum of the symbol table, then obviously, it might not work when a value which shares same hash comes, as it will exceed maximum index of chain.

But, so far, it works as a symbol which has younger index comes forward on my linker.

https://github.com/Hiroshi123/bin_tools/blob/master/src/core/link/elf/dynamic.c

If you find a bug, tell me anything.

About linker development

It has been already a half year since I've written an article about a draft of my linker (http://vrodxda.hatenablog.com/entry/2019/11/30/160029) for PE format.

Since then, it had been progressed slowly from time to time. (https://github.com/Hiroshi123/bin_tools/tree/master/src/core/link)

Looking back the trajectory so far, I have added

Although it is still on the way, I will write down something I have learned from my linker development to somebody who is suppose to write an own linker.

Necessity of custom Loader

Passing through at some point, what needs to be taken into account with much considerations is about dynamic loader investigation for dynamic API relocation.
In my opinion, this sets an exclusive barrier to write a linker.

It is not enough to have a debugger and default pre-set loader to validate an output of a linker because you cannot debug at some part. To iterate rapidly the output validation test, you need to have at least one custom loader which ideally resembles the default loader.

On linux, I prefer to build musl libc( https://www.musl-libc.org/ ) by myself inserting printf where I need to know. Often, there are some differences between default libc from glibc. Still considering amount of code size which needs to be read and length of build time, it is good to pick one of light-weight libc up for the job.

On windows, default linker lives in ntdll!LdrInitializeThunk(http://vrodxda.hatenablog.com/entry/2019/09/18/085454) It seems that there are no alternatives and source codes unlike libc.

Luckily, there are lots of custom loader available if you google it by reflective PE loader. This is one of the technique which malware favours. Previously, I did some research for my job to investigate emotet loader, and it helped me a lot for validating intermediate output of my linker because it has less code and functionality and can let it executable without generating a new process.

Do not stick to what it formally should be

What made my progress slow was persistence to the output of default linker.
There might be some motivation to develop a linker. It might be for malware analysis, making ctf challenge, or just a mere curiosity.
In case, I did not set any objectives for my development at first point and tried to generate as default linker does. And, I came across so many bugs which come from non-essential functionalities.

These are for example in my case 1. Multiple loadable program headers .e.g. alignment 2. Preparation of section and Symbol which can be stripped

Regarding 1, default linker tries to let every loadable section into a shared program header if its protection is shared. I was not good at implementing this feature in a satisfiable way.
This is because if you allow multiple program headers, section order needs to be flexible and some header might come after the range where its size is fixed after relocation. This lets linking process complex and slow as you need to iterate re-computation relocation address and relocation itself.

At some point, I made a decision that I let every loadable section on one uniformed program header no matter what and do extra mapping and protection later on like UPX does.

For instance, .plt and .got are composed together and put aligned as I do not want to fix the virtual address even when relocation is on the way.

// .plt
// jump the address loading from 4byte from next two byte
0xff 0x25 0x02 0x00 0x00 0x00
// just for pudding
0x00 0x00
// .got comes here
0x00 0x00 0x00 0x00 0x00 0x00 0x00

Indeed, you cannot use default loader protection GNU_RELRO as it is on a same page. Nevertheless, I did not want to manage complexity which inherits from original linker design.

Good for making CTF challenge

Unintentionally, a generated elf executable provides nothing to objdump and less information to readelf keeping it still viable. This might come from at some degree dropping of formalness which I have written above.
Since I love obfuscation and de-obfuscation, this design feels good to me.
I enjoy thinking these days how challenging a question could be with it.
For instance, it is not difficult to prevent debuggers from stepping in if you write some initial routines before __libc_start_main. I do not know many challenges where a question had been implemented from linking level, but it should be enjoyable from both challenge providers & solvers if it is linked in a special way.

windowsでパケットをinterceptするツール

windivert

年末年始休暇を利用して、windowsでパケットをインターセプト(capture + drop)する方法を探していてwindivert(https://github.com/basil00/Divert)というライブラリを見つけた。
npcap/winpcap辺りだと、dropができないようなので。良いツールだが、日本語の紹介記事が無いので書いている。

そもそもの目的としては、解析に辺り、以下の様な点を解消してくれるツールを探していた。

  1. c&cサーバとの通信のプロキシ
    c&cサーバとの通信パケットの中身を別サーバでフックしたい。
  2. SSL通信の可視化
    所謂,SSL inspection。
  3. c&cサーバが死んでいる場合の擬似サーバ設置
    通信したc&cサーバの接続先IPが変更された場合も解析したい。

自動化難易度的には1<2<3である。 windivertは、少なくとも1に関しては、そのままでも満たせそうなツールだ。

プロキシの例

examplesの中でも最も秀逸だと思った物が

Divert/streamdump.c at master · basil00/Divert · GitHub

やっていることは、いわゆる、NAPT(ポートフォワーディング + IP変換)によるプロキシサーバ生成。
コードの簡潔さがすごい。

まず、ハイレベルな文法でcapture対象のパケットを指定する。 今回は、トランスポート層における3つの送受信元先のポート宛てのパケットをcaptureする。

"tcp and "
        "(tcp.DstPort == %d or tcp.DstPort == %d or tcp.DstPort == %d or "
         "tcp.SrcPort == %d or tcp.SrcPort == %d or tcp.SrcPort == %d)",

それぞれ、

  1. captureしたい宛先ポート
  2. proxy serverの受信元ポート
  3. 代理クライアントの送信先ポート

代理クライアントの送信先ポートは実際に送信が行われるポートでは無いが、captureしたいポートへの出力への出力はforwardingされる為、 裏の出口ポートとして設定されている。詳しくは後述。

基本的には、

 handle = WinDivertOpen(filter, WINDIVERT_LAYER_NETWORK, priority, 0);

でcaptureするレイヤーを決定(今回は、L3(IPヘッダ以上)がcaptureできる)し、

WinDivertRecv(handle, packet, sizeof(packet), &packet_len, &addr)

...

WinDivertSend(handle, packet, packet_len, NULL, &addr)

recvとsendの間にfilterする処理を書くという流れ。
recvとsendの間にpacketの内容を書き換えたり、条件により、sendを行わないことでdropできる。

今回の例では、規則として、以下を記述している。

  • 外部への通信(IPヘッダの送信元=ホストのIP & 送信先/=ホストのIP)の場合

規則1. 宛先ポートの通信をインバウンドに変換

送信先ポート : 監視したいポート -> proxy serverのポート
IP : 送信元IP <-> 送信先IP

規則2. プロキシサーバから外部への通信の送信元の書き換え

送信元ポート : proxy serverのポート-> フック対象ポート
IP : 送信元IP <-> 送信先IP

規則3. 代替ポートへの外部向けの送信をフック対象ポートに戻す

送信先ポート : 代替ポート -> フック対象ポート

  • 外部から内部への通信

規則4. フック対象ポートからの通信を代替ポートからの通信へと偽装


以上のルールの元、proxy server(以下,server1), また、フック対象への通信ごとに、別スレッドで肩代わりするクライアント(client0)を設け、 外部のサーバとの接続確立を行い、送受信用に2つスレッドを設ける。
- 内部から外部への通信のためのスレッド(以下,client1)
- 外部から内部への通信のためのスレッド(以下,client2)

TCP handshakeの例

TCPの場合を例に出す。説明のために、フック対象ポートを443とする。

server1 の役割

server1はフック対象元のポートに通信を行ったソケットからの接続を代替する。

  1. あるプロセスから443への接続が行われる。
  2. 通信を行ったsynパケットが規則1により、送信先ポートが変換され、IPも送信先元が反転されるため、proxy serverのポートでlisten中のサーバに届く。
  3. proxy serverは(というかドライバ側で)、syn/ackパケットを1で通信を行ったクライアントの送信元ポートに送信する。
  4. syn/ackパケットは、送信元ポートがproxy serverのポートであり、かつ、2のIP反転により外部向けの通信になっている。 そのため、規則2により、送信元ポートが443に置き換えられ、IPアドレスの送信先/元も反転される。
  5. 1で接続を行ったプロセスがackパケットを再度サーバに送る。
  6. 1と同じ原理で、proxy serverのソケットにパケットが届く。
  7. この段階で、サーバのapplicationレイヤーのaccept処理(https://github.com/basil00/Divert/blob/master/examples/streamdump/streamdump.c#L302)が返る。

client0の役割を説明

7のaccept後、1つの新しく生成されたスレッドと、同スレッドそれぞれでソケットが生成される。

1つは、外部の443への接続を肩代わりする物である。

  1. この通信先は、application側では代替ポート宛てに通信を行うが、 ドライバで規則3によりフック対象ポート443に書き換えられる。規則3はIPの変換はなく、通信はそのまま外部に出ていく。
  2. 生の通信先からのsyn/ackが帰ってくる。通信は、規則4により代替ポートからの通信と解釈される。
  3. 代替ポートに、ackを送り、connect(https://github.com/basil00/Divert/blob/master/examples/streamdump/streamdump.c#L360)関数が返る。

なお、接続が確立すると、スレッドを生成し、1つで実際のサーバとのやりとり、もう一方で、クライアントとのやりとりが行われる。 なお、通常のクライアントは、recvしたソケットに再度sendを行うが、この場合、
送信側 : proxyサーバのソケットでrecvし、(パケットに対して任意の処理を行った後、)実際のサーバとのやりとりに使う外部向けソケットにsendする
受信側 : 外部向けソケットでrecvし、proxyサーバのポート(を送信先)として、(acceptしたポート宛てに)sendする

となっている。

sendした場合

  1. あるプロセスから接続確立済み、外部443ポートへのサーバへパケットを送信する。
  2. 外部向けの通信は規則1により、proxy server向けの通信に変換される。
  3. 生成されたデータは、proxyサーバ上で待つ1つのスレッドに補足され、そのサーバは、代替ポート先へ再度sendを行う。
  4. 代替ポートへのsendは、規則3により443に変換され、送信される。

recvした場合

  1. あるプロセスの接続先サーバからパケットが届く。
  2. 規則4により送信元(サーバの)ポートが代替ポートに変換される。
  3. 代替ポート先にrecvを行っていたスレッドの処理を起こし、そのスレッドが、proxyサーバのソケットを利用してsendする。この場合、送信元がproxy serverになる。なお、IPアドレスは、受信先を送信先に設定するので、外部向け通信となる。
  4. proxyサーバのポートからの外部向けは、規則2より、内部向け、かつ、フック対象ポート(443)に形式上変換される。

補足

  • l2レイヤー(MACアドレス)のcapture,interceptはできません。
  • クライアントの送信元ポートが指定されているプロトコルだと上手く行きません。
  • 自分の理解の為にまとめたけど、実際にpacket captureしながら触ってみないとわかりずらいかも。。

Three chains for writing a linker

This is for organising my knowledge to create a simple linker of PE. Linker is a bit hard target for being written from scratch without being considered its abstraction to me.

What a linker will do is roughly, having one or multiple object files which contains multiple sections and its corresponding data or code, then creating an executable file or static or dynamic load library.

The internal role in terms of its data structure can be split as next 3.

1. Section merging
merging them if the name of a section is identical with the one which you have observed.
2. Static relocation
resolving address of import symbols if it finds corresponding exports symbols on a different object file.
3. Preparation of dynamic relocation
preparing a data for dynamic relocation if you could not do statically.

Three linked lists which I name as "chain" are introduced accordingly.


1. Section Chain ( and Section Container)

To merge sections nicely, a linked list which links same section will be used. When you read an input object file, you assume you mapped all sections with its all tagged data or code pointed by PointerToRawData element on heap of the linker process.(Of course, you can only map sections not data at first stage, but it needs some overhead by reassignment of input file pointer). Merging them between different sections should not involve reallocation of one of data as this is just in vain. You should let them be on a same element of a linked list and do not merge them till you actually write an output file. You need two different stage linked list.

1. Section Container
=> A linked list which links sections that represents the head of the internal linked list(they are not merged).
2. Section Chain
=> An internal linked list for sections which will be merged eventually.

Below diagram will illustrate this scheme.

o -> o -> o
|    |
o1  o1
     |
    o2

o : Section Container
o1,o2 : Section Chain

SectionChain will refer actual section data(pointer to IMAGE_SECTION_HEADER allocated on a heap), but SectionContainer will not.


2. Symbol Chain (with symbol hash table)

If you put extern symbols on an object file, it lacks elements on actual data which normally kept as blank. They needs to be resolved by linker or dynamic loader. Candidate suppliers of the address have storage class such as export or global not static. Symbol table will hold these information. When you read new object file and its symbol table, if you find a symbol which needs to be resolved, it should look for the candidate which might supply the missing address. Every time you have new import address, you need to compare the ever-exported symbol name if one of them is matched. It should not be done by iterating a loop which contains strcmp as it gets you heavy work. Often, hash table is introduced, and all export/import symbol is coded as hash produced by a hash function. The size of it which often called bucket should be adjusted through the number of given object file or its total number of symbols. Each hash function should contain a heads of linked list to deal with collision. Then, when you compute the hash for a name of import or export, if you find something there on the hash table, you need to confirm if the hash was computed by the same query, and if they are different trace the linked list. Of course, you need to do something equivalent to strcmp at serveral times if it lacks luck. But, it must be far better way rather than computing strcmp from top of the list of export symbol.


3. Object Chain (with SectionChain)

SymbolChain is good for resolving symbols, but not good for a task like collecting all of export/import symbols listed on object file. Such task is required if one of the import symbol cannot be statically linked, but could be done by one of symbols on dynamic library supplied by -l in case of gcc. They cannot provide a decisive address at this stage as they will not be on output file statically. Instead, linker will set an element of entry on image import table which tells indirectly loader to resolve the empty address. After you have done all of static relocation, and each section pointed from SectionChain have estimated virtual address and virtual size when they are executed, you need to resolve non-resolved symbols against list of dynamic link library that loader will load. ObjectChain simply points to head entry of SYMBOL_TABLE of the object file and hold its size and help collecting all of non-symbols. Since not all of entry of object table needs to be the target it is wrapped by a linked list(which I name it SymbolChain as well) where you can traverse just the entries which needs to be checked.

Basic Procedure

Non-Incremental way

  1. Read list of input object file name, and allocate each of them on heap
  2. Check header, Estimate appropriate size of bucket of hash table.
  3. Read list of image section header of each object file(construct SectionChain)
  4. Read a symbol table of each object file(fill SymbolChain in a value of symbol hash table if the entry is import/export)
    Construct ObjectChain with the iteration
  5. Allocate additional section, normally named such as idata or edata and more as you like.
    -> Its existance should not violate virtual address of section which contains export function.
  6. After reading every object files, fill VirtualAddress and estimated pointer on generated output file(PointerToRawData) ( plus VirtualSize not mandatory..) on SectionContainer by summarising SectionChain
  7. Do relocation in between the object file
    7-1. Collect import symbols which its address needs to be resolved from ObjectChain(iterating via SymbolChain on it)
    7-2. Compute the hash and get the pointer of IMAGE_SYMBOL
    7-3. IMAGE_SYMBOL has SectionIndex. Get the section name from ObjectChain.
    7-4. Traverse SectionChain and find a SectionChain whose name is matched with the one that you are looking for, get the virtual address.
    7-5. After having virtual address of the section and Offset of the export function IMAGE_SYMBOL.Value, you can fill virtual address offset of the output section.
  8. Add data for import & export section (it requires its VirtualAddress at this stage not on 7.)
  9. Generate an output file putting additional image dos & optional header.

Position settlement and relocation

What is tricky part for implementing linker is a mutual dependency between settling virtual address/ output file pointer on fixed position(procedure 6) and relocation(procedure 7). If you do not fix virtual address of an exported symbol, you cannot resolve an import symbol by it as the virtual address might be just what you want to fill in(depends on relocation type). On the other hand, linker still needs to generate some codes(such as PLT) which might consequently slide virtual address of following sections.

Some linkers solves this dependency iterating 6,7 again until virtual address settles down, but it causes link time overhead.

Better way should be separating a section which needs to be fixed for relocation and a section which does not require the settlement at the stage. If you are careful about this, you can make sure section address will not be changed during relocation adding some codes. For instance, virtual address of import/export section does not needs to be fixed until relocation. This applies when you need to generate some small codes; it should not violate settlement of virtual address, instead set a new section; somewhere after relocation target area.

Bad example is

a linker prepares a code for relocation of loader

0xff 0x25
.text

0xe8 xx xx xx xx

....

(bottom on .text section)
0xff 0x25 xx xx xx xx(jump to IAT)

...

.data(relocation target section)
...

.idata

IAT

When a compiler generated call by 0xe8 xx xx xx xx you need to set a buffer(often inserting another jump code) for resolving by loader as relative call cannot take a look at values filled by loader on IAT.

Inserted jump code 0xff 0x25 xx xx xx xx is often put on the bottom of the section that the resolved function exists. But, if the section is followed by another section which might supply export symbols, then the virtual address may be slided back for the insertion.

To prevent this, the buffer code needs to be stubbed on a section after sections that requires its virtual address fixed on relocation.

How To Check validness of an output fie

When you generate an executable, you can validate if the output is valid at 3 stage.

  • Is the image successfully mapped before loading? This is done by CreateProcesswith its primary thread suspended.

  • Does loader load it properly? Checked by rewriting entry point as eternal loop such as (0xef 0xee) while you suspend it initially and resume it after rewriting. This is useful for checking optional header

  • Is the image correctly executed?


That's it. The code is on

https://github.com/Hiroshi123/bin_tools/tree/master/src/core/link

still needs more work :()

I added a diagram to illustrate the structure.

f:id:vrodxda:20200511221650p:plain
diagram

This link has some rough documentation.

https://github.com/Hiroshi123/bin_tools/wiki/LDD-documentation
